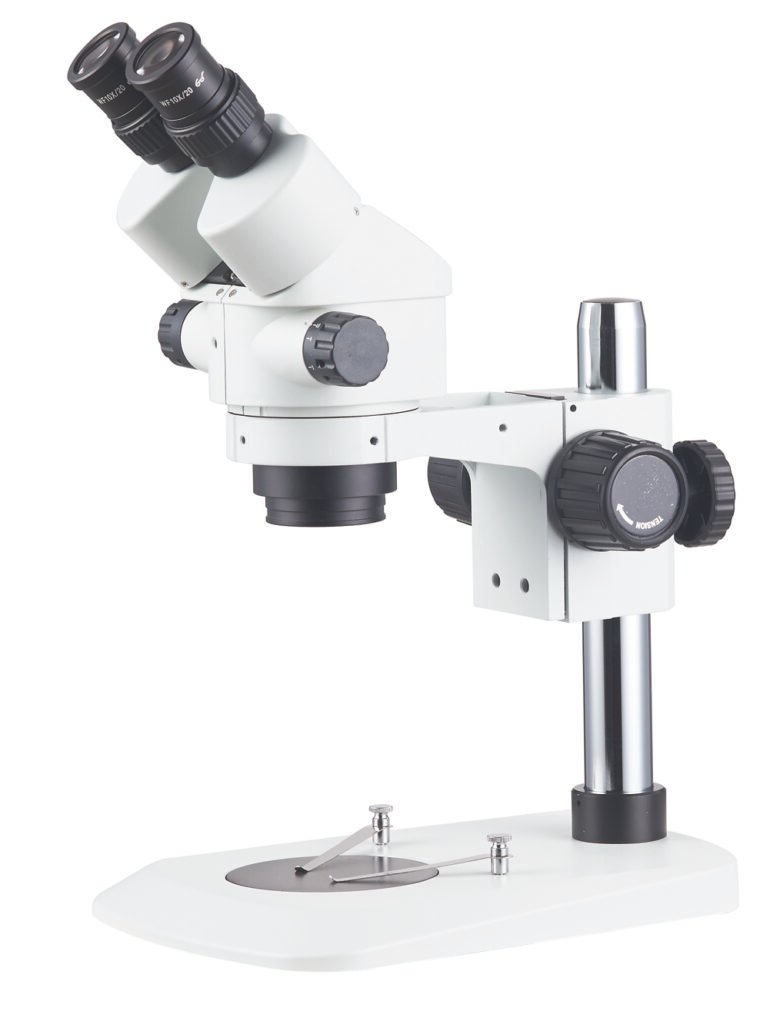

SZM7045N-B6 Stereo Zoom Microscope

Product Introduction

SZM7045N Series Stereo Zoom Microscope, is a new device with the fresh shape. It has the same technical parameters with SZM7045 Series Stereo Zoom Microscope. Continuous zoom objective 0.70X~4.5X (zoom ratio 6.4: 1), optional eyepieces and auxiliary objectives, can realize the best system magnification. It is the first choice for modern electronic industry testing and equipment supporting.

Standard Configuration

• Binocular head, 45° inclined, 360° Rotation, Interpupillary Distance Adjustment Range 54mm-75mm, Adjustable Diopter. Adjustment Range +5 Diopters, 0.70X-4.5X Continuous Zoom Lens, Extra-long Working Distance of 100mm
• High-Eyepoint Wide-Field Eyepiece WF10X/20mm, Can Be Equipped with a Micrometer Ruler
• Continuous zoom objective 0.7X~4.5X
• Zoom ratio 6.4: 1
• Magnification: 7X-45X,  3.5X-270X with optional eyepieces and objectives
• Working Distance 100mm
• Focusing Knob Tension Adjustable, Lifting Range 50mm
• Stand: B6 Pole Stand,Vertical Pole height:240mm Dia.32mm,Stand Size:205x275x22mm, with Φ95mm B/W Plastic Plate and Paired Clips

Optional Configuration

• Auxiliary Objectives: 0.5X/165mm, 0.75X/105mm,1.5X/45mm, 2X/30mm
• Eyepiece: WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
• Camera adapter:0.35X/0.5X/1X C-mount adapter
• Illumination: Various Ring Lights
