Product Introduction

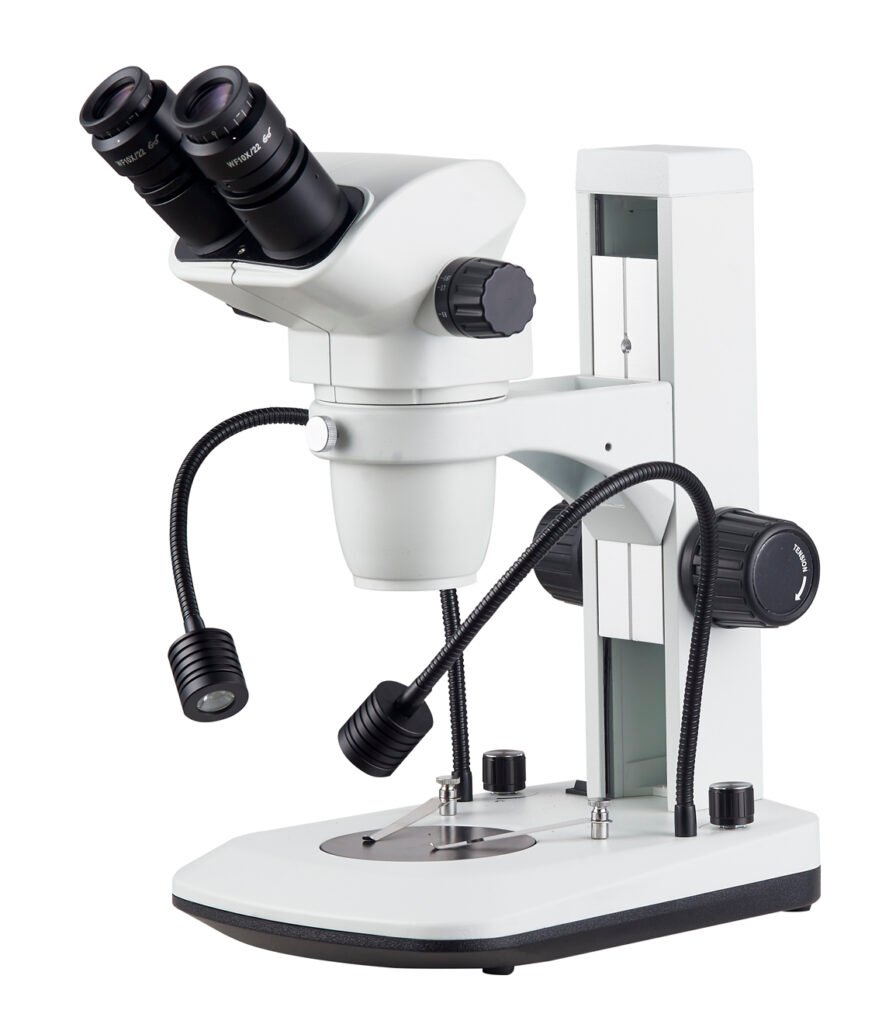

SZX6745 series stereo zoom microscope with ergonomic structure design, optimal eyepoint height, no fatigue for long time use. Provide high quality optical system and durable and reliable operating mechanism. A full range of accessories, diversified combinations and configurations. Meet the requirements of high precision in modern biology, medicine, scientific research, on-line testing in modern electronics industry and other scientific and industrial fields
Standard Configuration
- Binocular Observation Head ，45° Inclined, Interpupillary Distance Adjustment: 54mm-76mm, With Built-in Interlock Mechanism, Adjustable Diopter, Diopter Adjustment Range +5 Diopters
- High-Eyepoint Wide-Field Eyepiece WF10X/22mm, Can Be Equipped with a Micrometer Ruler
- 0.67X-4.5X Continuous Zoom Lens
- Working Distance 105mm
- Zoom Ratio:6.7:1
- Magnification: 6.7X-45X, 3.4X-270X with optional eyepieces and objectives
- Stand: B9LS Track Stand，Double Gooseneck LED Illumination with an independent control，Stand Size:205x275x40mm, with Φ95mm B/W Plastic Plate
Optional Configuration
- Objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
- Eyepiece: WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
- Camera Eyepieces: 0.35X, 0.5X, 1.0X
- Illumination: Various Ring Lights
