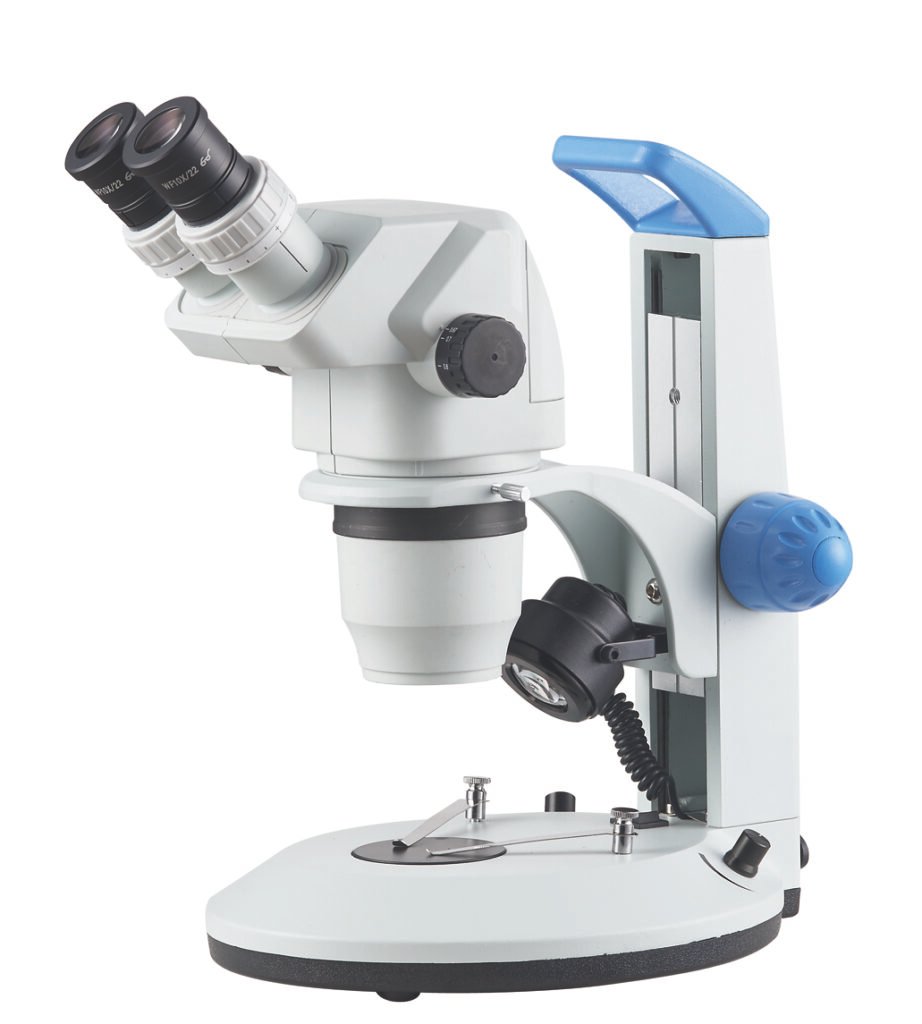

Product Introduction
SZ6745 series stereo zoom microscope with ergonomic structure design, optimal eye-point height, no fatigue for long time use. Provide high quality optical system and durable and reliable operating mechanism. A full range of accessories, diversified combinations and configurations. Meet the requirements of high precision in modern biology, medicine, scientific research, on-line testing in modern electronics industry and other scientific and industrial fields
Standard Configuration
- Binocular Observation Head ，45° Inclined, Interpupillary Distance Adjustment: 54mm-76mm, With Built-in Interlock Mechanism, Adjustable Diopter, Diopter Adjustment Range +5 Diopters
- High-Eyepoint Wide-Field Eyepiece WF10X/22mm, Can Be Equipped with a Micrometer Ruler
- 0.67X-4.5X Continuous Zoom Lens
- Working Distance 105mm
- Zoom Ratio:6.7:1
- Magnification: 6.7X-45X, 3.4X-270X with optional eyepieces and objectives
- Stand: 2L Track Stand，Vertical Height:276mm,Focusing Distance:74mm,ounting Dia:Φ76mm,op and Bottom LED Illumination with an independent control,tand:255x200x40mm, with Φ60mm B/W Plastic & Perspex Plate and Paired Clips
Optional Configuration
- Objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
- Eyepiece: WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
- Camera Eyepieces: 0.35X, 0.5X, 1.0X
- Illumination: Various Ring Lights
