Product Introduction

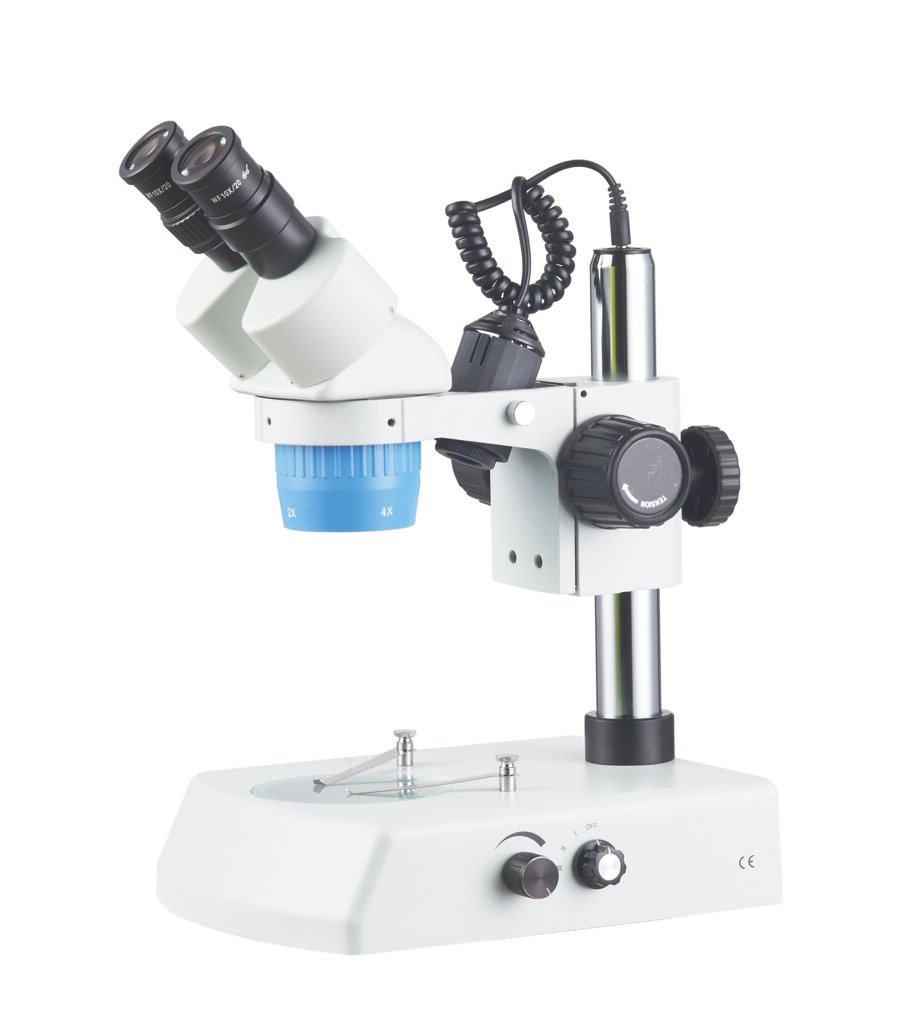

ST60N Series stereo microscope，with compact and comfortable design with a fresh blue and white color scheme, features adjustable magnification, wide-field high-eyepoint eyepieces, flexible mechanical adjustment structure, and multiple illumination options. It is suitable for industrial inspection, precision repair, biological observation, and routine laboratory analysis, supporting diversified magnification combinations with optional accessories.
Standard Configuration
- Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired, Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
- Standard Eyepiece: WF10X/20mm High-eyepoint Wide-field Eyepiece (Glasses-friendly)
- Objective:1X, 2X, 3X, 4X (Combination: 2X/4X, 1X/3X, 1X/2X)
- Magnification: 20X/40X, 10X/30X, 10X/20X
- Holder: A1 focusing mount
- Working Distance 100mm
- Stand:B2 pole stand，Vertical pole height :240mm Dia.32mm，Top and Bottom 12V/15W halogen Illumination with an independent control，stand Size:200x255x60mm, with Φ95mm B/W Plastic Plate and Glass Plate and Paired Clips
Optional Configuration
- Eyepiece: WF15X/15mm, WF20X/10mm
- Illumination: Various Ring Lights
