Product Introduction

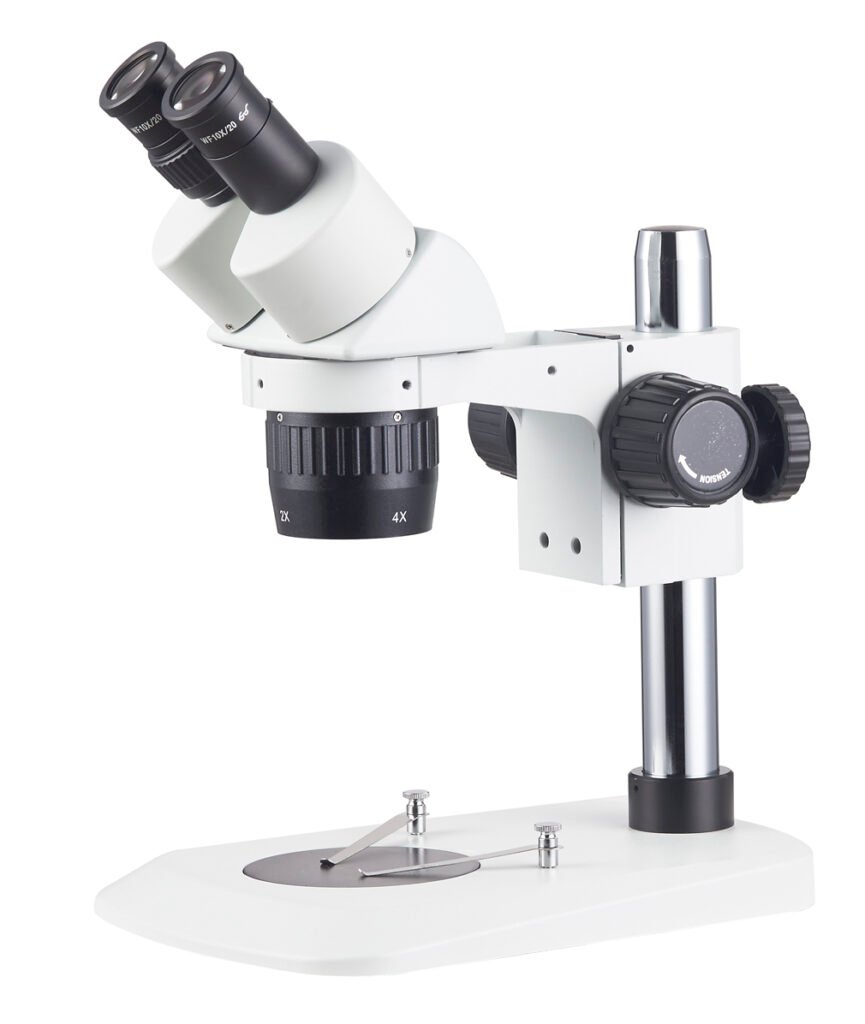

ST60 Series stereo microscope features wide-field high-eyepoint eyepieces, flexible mechanical adjustment structure, with 20X/40X ,10X/30X, 10X/20X magnification for option, and multiple illumination for option. It is suitable for industrial inspection, PCB checking or repairing , Jewelry checking , biological observation, and routine laboratory analysis, supporting diversified magnification combinations with optional accessories.
Standard Configuration
- Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired, Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
- Standard Eyepiece: WF10X/20mm High-eyepoint Wide-field Eyepiece (Glasses-friendly)
- Objective:1X, 2X, 3X, 4X (Combination: 2X/4X, 1X/3X, 1X/2X)
- Magnification: 20X/40X, 10X/30X, 10X/20X
- Working Distance 100mm
- Stand: B6 Pole Stand，Stand Size:205x275x22mm, with Φ95mm B/W Plastic Plate and Paired Clips
Optional Configuration
- Eyepiece: WF15X/15mm, WF20X/10mm
- Illumination: Various Ring Lights
